Build real-time voice agents on Azure

Code-first framework for production voice AI. Handles telephony, audio streaming, STT → LLM → TTS orchestration, and multi-agent handoffs so you focus on your domain logic.

Quick Start → Architecture

Every channel converges on the same ART Agent core — dual orchestration modes, live multi-agent handoffs, shared tools and memory.

Show original conceptual PNG (legacy reference) →

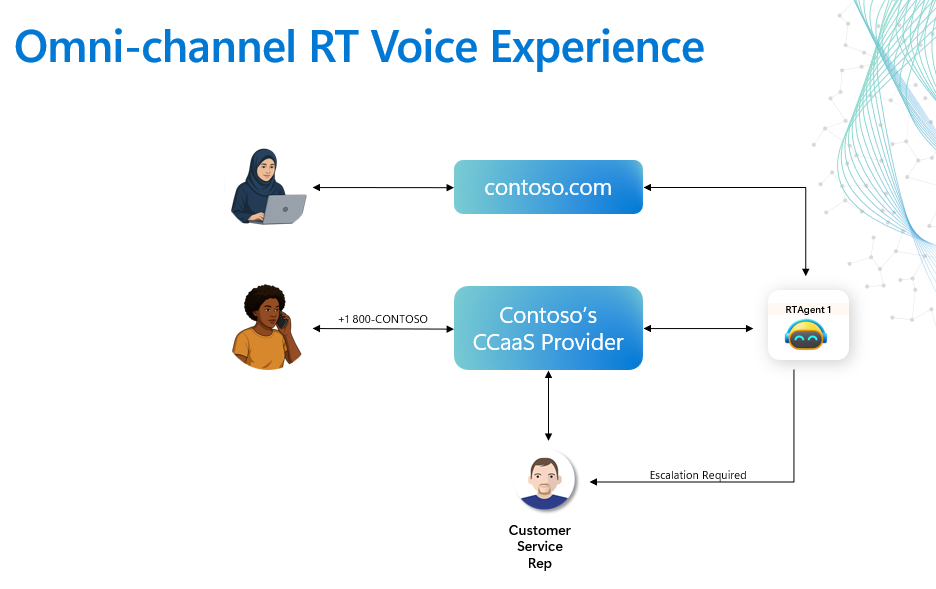

Omnichannel voice experience — web, phone, and CCaaS all routing to RTAgent with human escalation — Original PowerPoint sketch — kept for reference

📞

Telephony built in

ACS integration for PSTN, SIP, IVR, barge-in. Works with contact centers out of the box.

🔄

Two orchestration modes

SpeechCascade for full control, VoiceLive for lowest latency. Same agent framework for both.

🤖

Multi-agent handoffs

YAML-defined agents with scenario-based routing. No code changes to rewire agent flows.

🔧

Tool registry

Shared tool store with MCP support. Every agent gets the same capabilities without duplication.

⚡

Sub-second latency

Connection pooling, streaming TTS, async everywhere. End-to-end turn target < 1 second.

📊

Observable

OpenTelemetry traces, Application Insights, structured logging. Debug voice pipelines in production.

Quick Start (~25 min)

From clone to a working voice agent talking on the phone.

The first run is mostly doing the boring but necessary platform work: pulling the repo, logging into Azure, provisioning the runtime, building the containers, and waiting for Azure to finish wiring the services together. Once that foundation exists, local iteration is much faster.

1. Azure has to provision the platform

azd up creates the Azure resources, deploys the backend, and publishes the frontend URL.

2. Container builds take real time

The repo ships both Python and web assets, so the first build compiles images instead of just starting a script.

3. The long part is mostly waiting

Human effort is closer to a few minutes. The rest is Azure provisioning, image pushes, and service warm-up.

Clone + authenticate Provision Azure resources Build and publish containers Open the phone-ready frontend

Clone repository

Azure-Samples/art-voice-agent-accelerator

Use HTTPS to get started quickly, then switch remotes later if you prefer SSH.

# Clone and enter the repo
git clone https://github.com/Azure-Samples/art-voice-agent-accelerator.git
cd art-voice-agent-accelerator

Authenticate

az login && azd auth login

Deploy everything

azd up

The estimate is roughly 15-20 minutes of Azure provisioning plus 5-10 minutes for the initial container build and publish.

⚠️ Two extra steps before phones ring. azd up stands up the platform, but it does not deploy your app code or buy a phone number for you. To get a working voice agent on the phone, follow these two guides next:

Deploy to Azure — push the backend + frontend to your provisioned Container Apps.
Enable Phone Calling (ACS) — buy a phone number and wire the Event Grid subscription that routes inbound calls to your backend.

Prerequisites: Azure CLI, Azure Developer CLI, Docker (or Podman), Azure subscription with Contributor access. See full prerequisites.

Run locally instead

# After azd up has created your Azure resources:
make install          # Install Python + Node deps
make start_backend    # FastAPI on :8010
make start_frontend   # Vite on :5173

The backend needs a dev tunnel for ACS callbacks. See local development guide.

Recommended Regions

Pick a region with full coverage of the two binding AI dependencies: the gpt-realtime audio model (powers VoiceLive mode and the realtime cascade variant) and the Azure AI Voice Live endpoint. ACS, Speech, Cosmos, Redis, and Container Apps are broadly available — the realtime audio surface is what narrows your choices.

Model naming as of mid-2026: The current realtime audio model is gpt-realtime (GA 2025-08-28), with gpt-realtime-mini, gpt-realtime-1.5 (2026-02-23), and gpt-realtime-2 (2026-05-06) as newer variants. The legacy gpt-4o-realtime-preview name is superseded — this accelerator defaults to gpt-realtime across all agent configs.

Region	`gpt-realtime`	Voice Live	Speech / ACS / Cosmos / Redis	Recommendation
East US 2	✅	✅ Regional + Global	✅	Default — full coverage
Sweden Central	✅	✅ Regional + Global	✅	EU data residency
West US 2	✅	✅ Regional + Global	✅	US West pairing
Southeast Asia	—	✅ Regional + Global	✅	APAC — Voice Live only
Japan East	—	✅ Regional + Global	✅	APAC — Voice Live only
Other major regions (East US, UK South, West Europe, France Central, Australia East, Brazil South…)	—	✅ Global standard	✅	Voice Live works; `gpt-realtime` via auto-fallback →

Voice Live has expanded well beyond its original four-region preview footprint — Global Standard deployment is now live across most major Americas / Europe / APAC regions. The five regions above additionally support Regional deployment (data pinned to that region) and have hosted gpt-realtime since GA.

Not in a supported region? You don't need to move. The azd up preflight detects when your primary AZURE_LOCATION lacks gpt-realtime / Voice Live and will provision the Voice Live Foundry endpoint in a supported region for you (defaulting to eastus2). Your app, ACS, Cosmos, and the rest of the stack stay in your chosen region — only the realtime AI endpoint is split out.

# Pin the Voice Live region explicitly (optional — azd will prompt otherwise)
azd env set AZURE_LOCATION             westeurope      # app + ACS + Cosmos here
azd env set TF_VAR_voice_live_location swedencentral   # gpt-realtime + Voice Live here
azd up

Always-current source of truth (region tables shift as Foundry expands availability): gpt-realtime regional availability ↗ · Voice Live regions ↗

Two Orchestration Modes

Same agent framework, different audio pipelines. Choose based on your latency and control requirements.

	SpeechCascade	VoiceLive
Audio path	Azure Speech STT → LLM → TTS	Azure VoiceLive SDK (managed)
Latency	~400ms	~200ms
VAD	Custom (your thresholds)	Server-side (automatic)
Voices	400+ Azure neural voices	HD voices (Ava, etc.)
STT customization	Custom Speech models, phrase lists	Built-in
Best for	On-prem, compliance, full control	Speed to production, lowest latency

# Sets the DEFAULT orchestration mode for ACS telephony calls
export ACS_STREAMING_MODE=MEDIA       # SpeechCascade (default)
export ACS_STREAMING_MODE=VOICE_LIVE  # VoiceLive

ACS_STREAMING_MODE only sets the default pipeline that inbound ACS phone calls use — it doesn't change the agent framework. Both modes run the same agents.

Full orchestration architecture →

Repository Structure

art-voice-agent-accelerator/
├── apps/artagent/
│   ├── backend/              # FastAPI + WebSockets voice pipeline
│   │   ├── voice/            # Orchestrators (cascade, voicelive)
│   │   └── registries/       # Agents (YAML), tools, scenarios
│   └── frontend/             # Vite + React demo client
├── src/                      # Core libraries (ACS, Speech, AOAI, Redis, Cosmos)
├── infra/                    # Terraform + Bicep IaC
├── tests/                    # Unit, integration, load tests
├── samples/                  # Tutorials and labs
└── utils/                    # Logging, telemetry helpers
